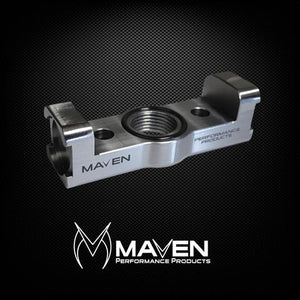

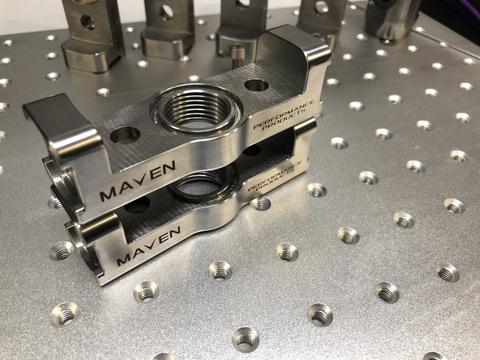

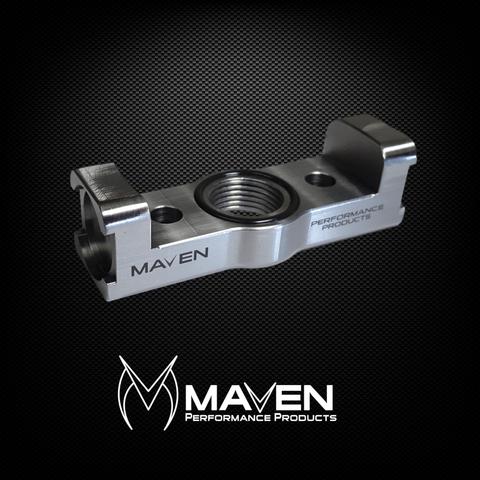

MAVEN PERFORMANCE SMALL FRAME (s300 etc) TURBO MOUNT

MAVEN PERFORMANCE TURBO MOUNT SMALL FRAME (ON CENTER , FITS S300 ETC), 175-A03 STANDARD 2.0 BOLT SPACING THE MAVEN PERFORMANCE BILLET STEEL TURBO MOUNT SUPPORTS THE TURBO FROM THE BEARING HOUSING AT THE DRAIN INTERFACE. THIS MOUNT WAS DESIGNED SPECIFICALLY FOR SMALL FRAME TURBOCHARGERS SUCH AS THE BORG WARNER s300, PRECISION TURBOS (60/70MM RANGE) PLUS A VERSION FOR THE GT35 FEATURES: DESIGNED & MACHINED IN THE USA BILLET STEEL – 1018 CRS 2 DIFFERENT TUBE DIAMETER POCKETS- 7/8″ & 1″ CENTER MOUNTING ON BEARING HOUSING -10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN) O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE
